This project presents an electric bicycle equipped with Solar Cell which will charge the battery with a solar panel. To be used to drive electric bicycles electric bicycles can be powered by two systems that are powered by the users cycling and from brushed DC motors from battery charging with solar panels the test will be tested by charging the panel with a time interval that the output voltage value From the solar panel which time interval is closer to the actual panel at 24 volts and charged into the batteryto test whether the electric bike can actually be used by a test drive starting with a displacement speed of 10 and 20 km/h at a distance of 100 meters. Using experiments with weight sizes of 50 60 and 70 kg respectively it was found that electric bicycles can actually be used. However the above project has been made into two parts. is the part that charges the battery from the solar panel and the second part is a separate electric bicycle.

This research had the objective to design and develop power production from daily life leftovers for their highest benefit of utilization by using the principle of quality function development and power generator that changed mechanical energy into electric energy. In developing electric generator product from air conditioner condensing unit the researcher found that there were 4 important factors including speed installation distance size and cross-sectional area of the fan and the test was conducted between 8.00-17.00 hours. The researcher collected the data and analyzed the test result and found that the best result in the test was to install the product at the distance of 10 cm by using an 18 fan in order to acquire the best voltage and the data were collected so that they could be implemented in developing such product in the future.

This paper presents a mathematical simulation to compared to operations a small distributed photovoltaic power plant in the distribution system. Practices transmission of electric power by small distributed solar energy With the PVSyst and IEC 61724 mathematical modeling programs the main objective was to study the % performance ratio photovoltaic power plants 5.95 MWp connected in the distribution system of the Provincial Electricity Authority voltage level 22 kV. Therefore this paper is presented as a mathematical simulation compared to operations a small distributed photovoltaic power plant in a distribution system. The results of the study show that the operation of small distributed solar power plants increases the efficiency to be able to produce the maximum electricity and continuously. The system was able to produce the highest power of 8954.9 MWh/year and had an average annual efficiency ratio of 77.84% receiving the highest solar radiation intensity and the highest annual total energy output of approximately 1837 kWh/m2

In this article the construction of a high-frequency high-voltage commercial flyback transformer to supply an input voltage for a tesla transformer is proposed. The purpose of a demonstration is a breakdown through the air gap of electrode. To confirm the proposed method the design of control of a flyback converter by using a commercial flyback transformer is rated with a 10 to 15 kV output voltage to supply a tesla transformer at a rated 30 kV and 120 kHz. The experimental results of an output breakdown design of the electrode and the setting for a 1 cm space are constructed. The electrodes consisted of the following: sphere–sphere electrode plane–plane electrode sphere–plane electrode and rod–plane electrode. It was found that there was a breakdown at the output electrode in all cases. Accordingly there was a breakdown with a 2 cm sphere diameter with reference to the IEC 60052-2002 standard; after that it was compared with the standard table and the atmospheric and temperature at the laboratory were adjusted resulting to a high voltage equal to 31.5 kV.

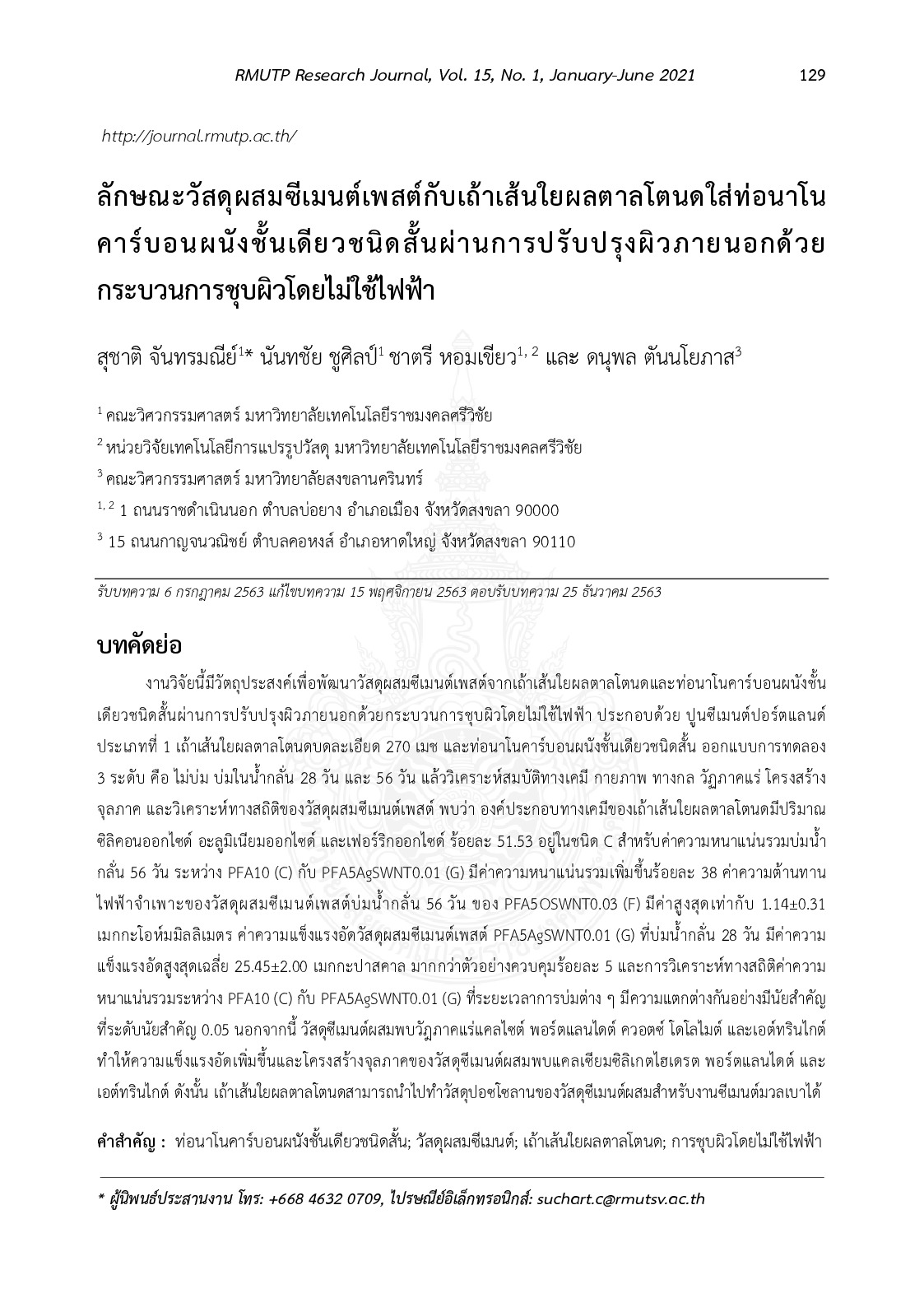

This research was resulted of the characterization of cement paste composites (CPC) blended with palmyra fiber ash and surface-treated on short SWNT prepared by an electroless plating process. The cement paste composites included cement 270 meshes of palmyra fiber ash and short SWNT. The design of experiment was divided into 3 conditions namely uncuring 28 and 56 days in distilled water. The properties of CPC were carried out in chemical composition physical mechanical mineral phase microstructure and statistical analysis. It was found that in the chemical compositions an amount of silicon dioxide aluminium oxide and ferric oxide were 51.53% which was rated in class C. The bulk densities of CPC series between PFA10 (C) and PFA5AgSWNT0.01 (G) cured 56-day distilled water were an increased 38%. Then the highest specific electrical resistivity of CPC series PFA5OSWNT0.03 (F) cured 56-day distilled water was 1.14±0.31 mega-ohm.mm. The highest compressive strength of CPC series PFA5AgSWNT0.01 (G) cured at 28-day distilled water was 25.45±2.00 MPa compared with the OPC (A) was an increased 5%. Which the bulk densities of CPC series between PFA10 (C) and PFA5AgSWNT0.01 (G) were statistical analyzed the mostly cured at significant difference α = 0.05. In addition CPC series PFA5AgSWNT0.01 (G) mainly contained calcite portlandite quartz dolomite and ettringite were caused increasing compressive strength. And the SEM microphotograph were also displayed the calcium silicate hydrate portlandite and ettringite. Consequently the PFA was used to ability pozzolanic material using for lightweight concrete of CPC.
