Recently the consumption rate of vehicle is continuously an increase as an economic growth. This not only causes the massive traffic but also effects on the accidental capacity especially the road accident between car and pedestrian. The most of victims who dead are Vulnerable Road Users are crashed by the front-end structure. Regarding this problem; the possibility of the Pedestrian Crash Simulator has studied and established following the Euro New Car Assessment Programs in Pedestrian Protection. This simulator can be adjusted in 3 axles of tested position. Besides the body forms are used as impactors which are pushed the high speed drive unit via the iron less linear motor. In addition the simulator can be adjusted from 0 to 65 of degree comparing the horizontal line. As a result the limitation of the Pedestrian Crashed Simulator is linear speeds because of budget limitation. The highest of performance is not more than 3000 mm/s with 19.46 mm/s2 of speeds and acceleration respectively. However this simulator can be developed the ability by addition of the power unit and control equipment. The highest acceleration should be 35.06 m/s2 within 1.76 m. of magnetic track rail to equivalent the specified condition of the EURO NCAP (in Pedestrian protection). Pedestrian protection testing machine

Nowadays one of the automotive engineering is conductivity of brake pads playing a role in friction coefficient which means safety of customer. Thus thermal properties have been improved using composited materials. This project aims to study the conductivity behavior of 3 different brake pads which are supported by the company Compact International (1994) Ltd. For experimental works temperature based on brake condition was simulated from 200 to 400°C and cooled down from 400 to 200°C at 1 5 and 8 MPa of pressure respectively. By standard JIS D4413 testing condition of pressure was referred. The non-linear of conductivity value are calculated from the temperature under steady state condition. As a result of testing there are several of parameters effecting on the non-linear conductivity value. The brake pad that is a mix of high-fiber affects the fluctuation of thermal conductivity. At the same time lubricant in the brake pad cause the stability of conductivity value in different temperature range at the same pressure. On the other hand the brake pad mixed hi-copper inspires the narrow range of conductivity value in different pressures at the same temperature. Moreover the conductivity value as a mention is inversely proportion with the coefficient of kinetic friction.

Recently the Thai industry has continually grown up and also plays a role to economic growth in the country which affects the many of automotive components to be in the market. While the degeneration and waste of automotive components had increased as well. Therefore a car hood is one of the automotive parts which damage from the accident. Consequently the researchers have created a prototype material to develop into the car hood which made from the husk and water hyacinth. The random mixture of water hyacinth and husk was attempted to more than 3 ingredients. By forming a flat plate with thickness between 1 to 3 millimeters was used as prototype of the car hood material in this research. Thus the mechanical properties such as compressing and bending test were attempted to by the universal testing machine. The results showed that using resin as a binder material (Reinforced resin by water hyacinth and husk) will have the less ability of energy absorption. While using polymers as a binder (Polymer resin by water hyacinth and husk) will have the better ability of energy absorption. The properly mixture between water hyacinth and husk referred to the energy absorbing properties is 50:50 because the least linear stiffness is 1.087 N/mm. Besides the ability of energy absorption is 1612444 J/m3 which is property of this ingredient can reduce the severity of the impact in the event of pedestrians collision in the best.

The purposes of this study were to investigate the heat transfer and the vibration characteristics caused by front and back vented brake disc which had physically different shapes affecting braking distance. In accordance with the theory of heat transfer the heat transfer rates of two types of brake disc were different and played an important role in the deformation during usage. The single dynamometer was conducted to the experimental work as an engineering tool with boundary conditions according to JASO C406 standard. One degree of freedom (DOF) acceleration signals on the brake caliper were analyzed. The results obviously discovered that the back vented brake disc was able to reduce the vibration up to 43.5% comparing to the front vented brake disc in case of the braking temperature 200C initial breaking speed 50 km/h and the hydraulic pressure of 4 MPa. Besides the hydraulic pressure at 4 MPa generated the maximum vibration. Furthermore the initial braking speed and the braking temperature were also the important factors. Regarding braking distance results the results of the experimental work obviously discovered that the back vented brake disc created braking distance shorter than front vented brake disc. Besides there were important factors as braking temperature hydraulic pressure and initial speed of braking. Especially the high braking temperature caused an increase of deceleration and a decrease of braking distance. Moreover the high hydraulic pressure produced a deduction of braking distance and an increase of deceleration. Finally the initial speed of braking directly varied to the braking distance

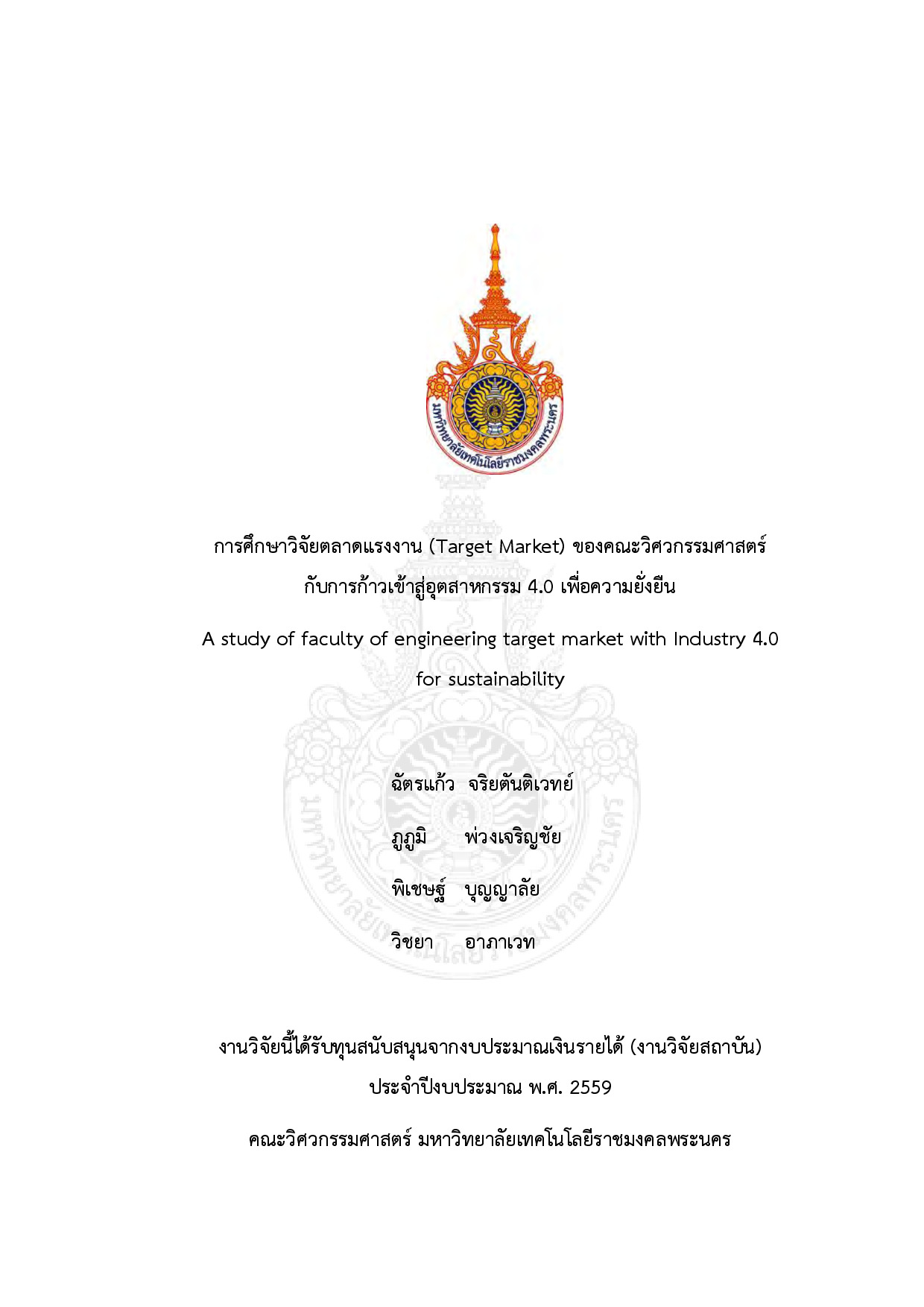

Since the industries are developing to Industry 4.0 in the near future. Therefore a study of faculty of engineering Rajamangala University of Technology Phra Nakhon target market with Industry 4.0 for sustainability is the necessity. In order to collect the data build the knowledge about the target market in the Industry 4.0 era. Moreover a survey of the requirement of graduates’ characteristic that can support the revolution from Industry 3.0 to Industry 4.0 is very important. Therefore the faculty of engineering Rajamangala University of Technology Phra Nakhon can well prepare the graduates production for supporting the Industry 4.0 for sustainability.
