The purpose of this research was to construct the rotating bending fatigue testing machine for metal material to find out the built-in machine performance and compare it with machines that meet international standards. The machine built into a compact machine using weight knob for a heavy load in testing. It can test the force range 50-300 Newton (N) the motor is a 1 HP transmitter with a speed of 2800 rpm. Start by pressing the Start button to release the weight that sends power to the workpiece and attend a sensor counting is available to detect the lack of testing material. For the efficiency performance of the machine uses 10 piece steel shafts diameter of 8 mm according to the standard of the material fatigue tester by independent end bend rotation. For testing to compare with the test international standard machine also uses 10 piece steel shafts using force 150 N. For the analysis to test statistical hypotheses with the Minitab computer program at the significance level of 0.05 it was found that the values obtained from be made the rotating bending fatigue testing machine for metal material there is no difference with standard machines from statistically significant. All values are within the set limits. In conclusion the machine was created to be as effective as the international standard machine.

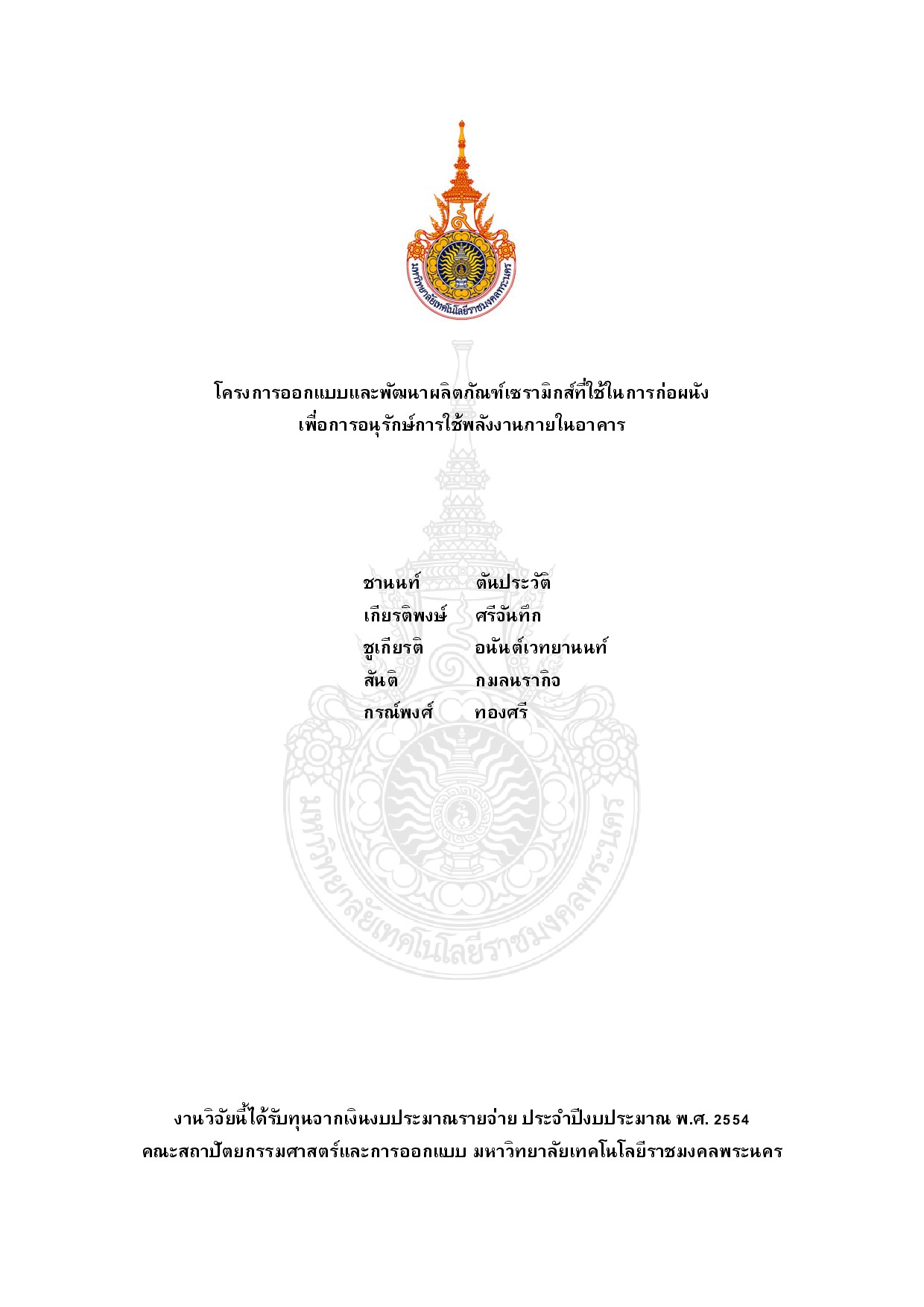

This research aims to study and test a ceramic product in using to constructs a wall. This research is based on a previous studying to develop a ceramic product that saves the energy in the building. The early test shows the product has out door heat resisting capability and it is very user-friendly. However the test was only an early stage. The research still lack of a real life situation test and has very little feedback from the consumers. All of which are very importance to farther develop this product into a production stage. The research has 2 steps. First step to testing the heat and humidity resisting quality of the product the researcher is building four testing blocks (dimension 1x1x1 meter). Each block has different material on one of its side block 1 has brick block 2 has concrete masonry unit block 3 has autoclaved aerated concrete and block 4 has ceramic block. The other three side of each block have a heated and humidity resisting form. The researches test the following; heat energy the temperature inside the blocks and humidity inside the block. After comparing the difference between the airs inside and out-side of the blocks the block 2 with concrete masonry unit has the best humidity resisting quality and is the most user-friendly product. In the term of heat resisting block 3 with autoclaved aerated concrete perform the best. Second step to test the user-friendliness of the product the researcher found 2 groups of consumers. First group are the wall constructing expert. This group has a hard time using this product and can’t get use d to the product so they find this product to be too thin and too weak. Second group the home owner feel the product has a thinner wall and believe it’s weaker than a typical construction brick. There for they still don’t know how to use this product.

This research aims to study the using a rubber sheet instead of the sulfur-capping accordance with ASTM C 617 in the compressive strength of concrete testing. The three of the compressive strength of concrete i.e. 180 240 and 320 ksc were the scope of study. The test results showed that the concrete with using a rubber sheet (fc (3)) had higher compressive strength than the standard concrete with sulfur-capping (fc (2)) at 7.7%. Therefore the adjustment factor from using a rubber sheet instead of the sulfur-capping in the compressive strength of concrete testing was 0.923; the compressive strength of concrete is equivalent to the standard testing. The relationship of compressive strength of concrete between fc (2) and fc (3) is fc (2) = 0.88 fc (3) + 12.04 with a correlation coefficient (r) of 0.988.

The aim of this research is to create the center of mass testing machine for vehicles with maximum mass 3000 kilograms. By the performance of this machine is able to determine the center of mass 3 axis by horizontal longitudinal and vertical. On the other hand the verities of mass from 50 to 250 kilograms and the several of weight distribution at horizontal and longitudinal are applied to the condition of testing for reasonable to the position of the center of gravity for vehicle. The result of research discovered to the performance of center of mass tester was activated following to test conditions. Furthermore the position of the horizontal of center of gravity depends on the weight distribution at horizontal axis and an increasing of mass under non-uniform along the longitudinal and horizontal axis. In term of the position of the longitudinal of center of gravity the weight distribution at longitudinal axis and an increasing of mass rate are points. Otherwise the weight distribution at longitudinal axis and an increasing of mass are effect to the position of the vertical of center of gravity.
