A promising composite of zinc ferrite (ZnFe2O4) and bioactive hydroxyapatite (Ca10(PO4)6(OH)2 ;HAp) has expected to potential for future bone reinforcing formation. In present study zinc ferrite and hydroxyapatite composite was prepared by solid state reaction route for easier control of structural and magnetic characteristics and with low cost. Hydroxyapatite powder was synthesized by precipitation method from chicken eggshell. Mixed powders with varying ZnFe2O4/HAp weight ratios from 2-10 wt% were milled together and uniaxially pressed and then sintered at 1200 oC for 3 hours. The XRD results showing no other phases of composite with only HAp and ZnFe2O4 phases were identified indicating high stability of HAp property. Phase fractions of ZnFe2O4 were found to increase from 10.8 to 18.73 wt% with increasing content of ZnFe2O4. FT-IR results of ZnFe2O4/HAp composite were only revealed vibration bands of standard HAp phase. This may due to the overlapping of the ZnFe2O4 vibrational bands with HAp bands. However their intense variations observed in HAp vibrational bands indicated the interaction between ZnFe2O4 and HAp. The surface morphology of these ZnFe2O4/HAp composite exhibited primary grain in nano scale with enhanced pore structure and Interconnectivity when ZnFe2O4 weight ratios increased; indicating high surface area for cell attachment and better good cell growth and differentiation. The higher saturation magnetization as well as higher super paramagnetic behavior could be easily altered by increasing ZnFe2O4 content in the composite.

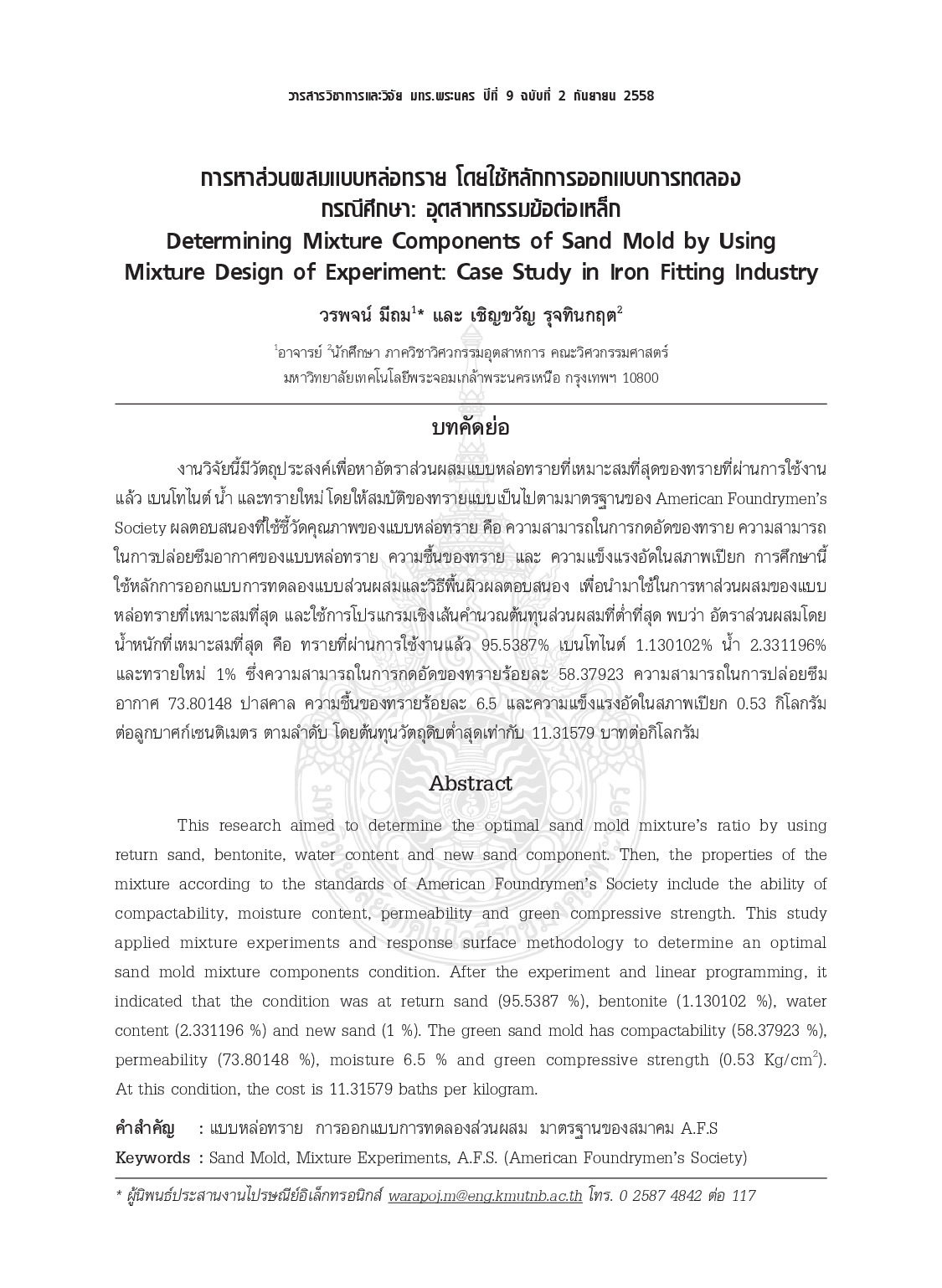

This research aimed to determine the optimal sand mold mixture’s ratio by using return sand bentonite water content and new sand component. Then the properties of the mixture according to the standards of American Foundrymen’s Society include the ability of compactability moisture content permeability and green compressive strength. This study applied mixture experiments and response surface methodology to determine an optimal sand mold mixture components condition. After the experiment and linear programming it indicated that the condition was at return sand (95.5387 %) bentonite (1.130102 %) water content (2.331196 %) and new sand (1 %). The green sand mold has compactability (58.37923 %) permeability (73.80148 %) moisture 6.5 % and green compressive strength (0.53 Kg/cm2). At this condition the cost is 11.31579 baths per kilogram.

Material selection for mold making are not only material prices wages but also there are other factors such as thermal strength shine and resistance to temperature changing that caused distortion and cracks. Preform injection molding from Polyethylene Terephthalate (PET) consumes time for drying granulated plastic in 4 – 6 hours at 140 - 160°C and injects at 280 – 300 °C. This is a very high temperature to inject into mold at 10 – 15°C in cool area. The material for mold making must be able to resist to thermal shock. Today molding machines are made of grade P20 steel (Standard JIS) to produce preform that takes long cycle time due to poor cooling. The research aims to compare the pricing time in mold making to preform injection time that made of aluminum -A7075 grade and grade P20 steel. The experiment is to make a mold that made of aluminum A7075 grade and grade P20 steel injects 15 gram preform. The PET is used to blow into a blow mold with pressure at 30 – 35 bar (Two – Stage) that are 2 bottles of 350 ML. The results of material selection for preform mold making showed that aluminum A7075 grade is cheaper 27.04% the mold price is cheaper 23.6% and consumes less cycle time than grade P20 steel.

ไม่ปรากฏบทคัดย่อ

ไม่ปรากฏบทคัดย่อ
