Admittedly a disc brake plays an important role in the auto part industry since it concerns directly with safety. Therefore the wide range of disc brake has been designed in order to develop its heat ventilation. Thus this project has designed a back-vented brake disc which is difference the current one (front-vented) and tried to create the test to find out the temperature diffusion of the disc brake with the hope to evaluate the coefficient of the heat convection varied by the temperature changing in both kinds of brakes under the forced heat convection in the steady condition. However the steady heat conduction and radiation value will not be counted because it is insignificant. The JASO C406: 2000 Standard is adopted as a guideline in the test. The outcome coefficient of heat conduction will be used in the simulation via the Finite Element Method (FEM) in order to study the temperature diffusion and heat ventilation of both kinds of brakes at each temperature level. Consequently the experimental work reveals then the heat convection coefficients of both kinds are unidirectional. The heat convection coefficient of the front-vented disc brake is 4.40 % in average higher than that of the back-vented disc brake. From the simulation the front-vented disc brake can ventilate the heat better than the back-vented disc brake at 3.02 % in average. It can be summarized that the front-vented disc brake has more temperature difference than the back-vented disc brake. Hence the front-vented disc brake likely gets more stress from the temperature than the back-vented disc brake and might be damaged during the operation more than the another type. Therefore this is tendency that the back-vented is safer than the front-vented brake disc for usage.

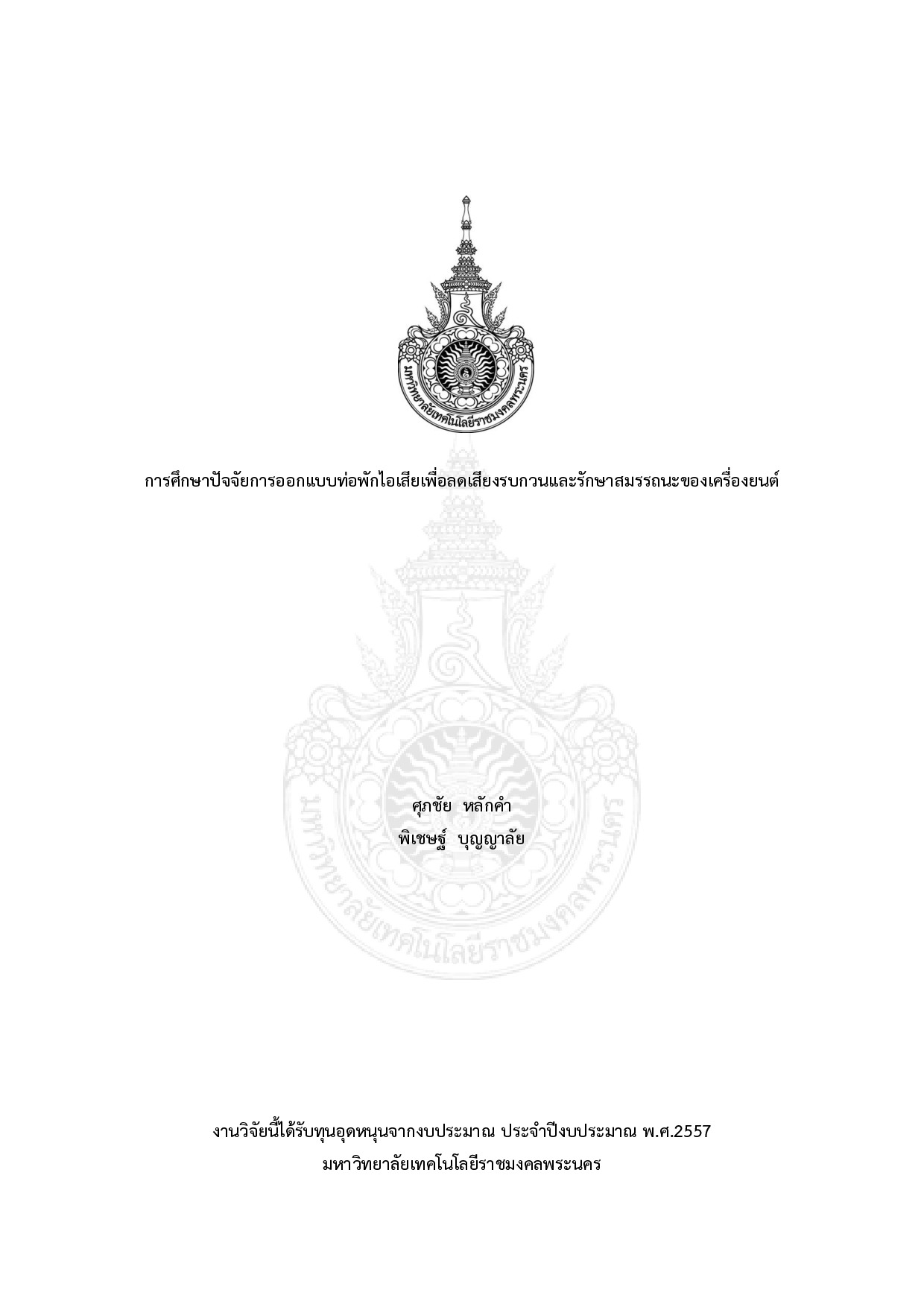

Nowadays the majority of environment problem is pollution of vehicle including the noise of engine combustion. For this reason this thesis aims to compare and study the parameters which affect noise reduction on exhaust pipe. Not only reduce the noise pollution but also maintain the efficiency of the engine. These two substances must be considered. Therefore the researcher emphasized to study the parameters on 3 types of muffler with an equal volume: direct reverse and offset type of mufflers. Initiated by data collection the pressure and the velocity in muffler at the speed of engine at 1000 RPM (slow-running engine mode) and 4000 RPM (maximum running engine mode) were investigated. The data were applied into the program that called “SolidWorks” in order to study parameters. In this step the relation between the pressure and velocity of exhaust were represented. In addition the muffler models were selected to manufacture and test by the standard of The Department of Land Transport. As a result there are two major parameters of the muffler. Firstly the metamorphism of the exhaust gas flow direction pleasurably causes the lower noise at the speed of engine at 1000 RPM. Besides an increase of the flow gas distance can diminish noise at the speed of engine at 4000 RPM as well. However this muffler models were tested under the working mode of catalytic device that is standard equipment for automotive vehicles.

Nowadays an automotive industry steadily has been growing and playing a major role on economy development for many years. The crash box is one of the most important parts for safety but it was found that the crash boxes manufactured domestically are not met international standard requirements. This is due to process and material limitation. This process for automotive safety test requires high budget and there is unclear approach for specific test. Therefore a study of crash boxes referred to energy absorption project was conducted as an alternative choice of testing. Regarding to the problems as addressed above this project was aimed to design and test crash boxes which come in various structures; simple type corrugated type and honeycomb type of crash box. In addition it was also emphasized in studying energy absorption behavior and physical deformation of crash boxes after dynamic and static energy being applied. Numeric simulation and static test methodology of front collision were applied for these tests in reference to USA NCAP standard for automobile collision test. Testing all types of crash boxes indicated that the corrugated type was able to absorb energy at 2.8% and 5.9% higher than honeycomb type and rectangular type respectively. This is capable to pick up stress and strain continually and effecting to more energy absorb than another type. Additionally this corrugated structure is feasible and suitable for crash box design in automotive manufacturing.

Brake system is used the friction between disk and pads. In the driving conditions the brake behavior from the driver is difference. Based on this reason the damage on disk and pads are occurring. Nowadays the ratio of compound materials in pads is several and involved automotive industry has not available enough to experiment. Thus it is difficult to brake pads damaged analyzing in several driving conditions. In this problem the mechanical property tester is main tool for experimental works and test procedure base on the Brake lining and disc brake pads compressibility JIS D 4413. The experiment emphasizes on the flexibility behavior and internal energy by volume with 3 types of brake lining and pads. For the experiment focused on conditions by normal apply brake repeat apply brake and suddenly apply brake. The results revealed the normal apply brake condition the maximum and minimum of flexibility behavior was appeared on brake lining and pads type A and type C with testing temperature at 200C. By the repeat and suddenly apply brake conditions the brake lining and pads type C and type A with 300C is given to the maximum and minimum flexibility behavior. In case of internal energy by volume the maximum and minimum energy was appeared on pads type C and type B at the 30C of testing temperature. For the testing temperature at 200 and 400C the pads type A and type B were got the maximum and minimum energy respectively. On the other hand at the high flexibility behavior is given to high internal energy at the high temperature of the apply brake condition.

This research was aimed to investigate for pineapple leaf paper drying. In this study process of drying the paper as a final step after the other. Paper drying time takes in solar energy to dry naturally for at least 2-3 days or more without natural sunshine. Solar hybrid energy dryer was designed for drying faster than traditional drying. The development of solar hybrid energy dryer ability to operate continuously. The solar dryer receives the heat from sunshine by passing into the solar panel dimension 1 x 2.6 m2 . The panel was installed on the top of the oven which declined 15 degree from the ground. The dimension of the oven is 1 x 1.05 x 1.30 m3 and have added heat to paraphrase another 2 rooms and heater 4 kW with controller and have added heat to paraphrase another 2 rooms. The dryer installed heater 4 kW with temperature controller and blower 0.22 kW serves as the circulation of heat in the oven to constant flow of 0.138 m3 / s. Experiment research test 3 types ; the use of solar energy alone the use of solar heater with a temperature of 50 55 and 60 °C and the heater only at 50 55 and 60 °C with three temperature settings. The variables in the study such as temperature humidity in the dryer humidity and Solar energy affect the pineapple leaf paper drying time. Experimental results from solar heater hybrid with 60 °C temperature setting was dried in minimum period of 3 hours and half at an average initial moisture content 1043.70% db to the final moisture content of 9.12% db. Highest average temperature in the dryer was 64.33 °C with electrical energy consumption 10.5 kWh. The use of only solar drying was dried in maximum period of 5 hours at an average initial moisture content 1070.98% db to the final moisture content of 15.84% db. Highest average temperature in the dryer was 39.89 °C with minimum electrical energy consumption 10.5 kWh.
