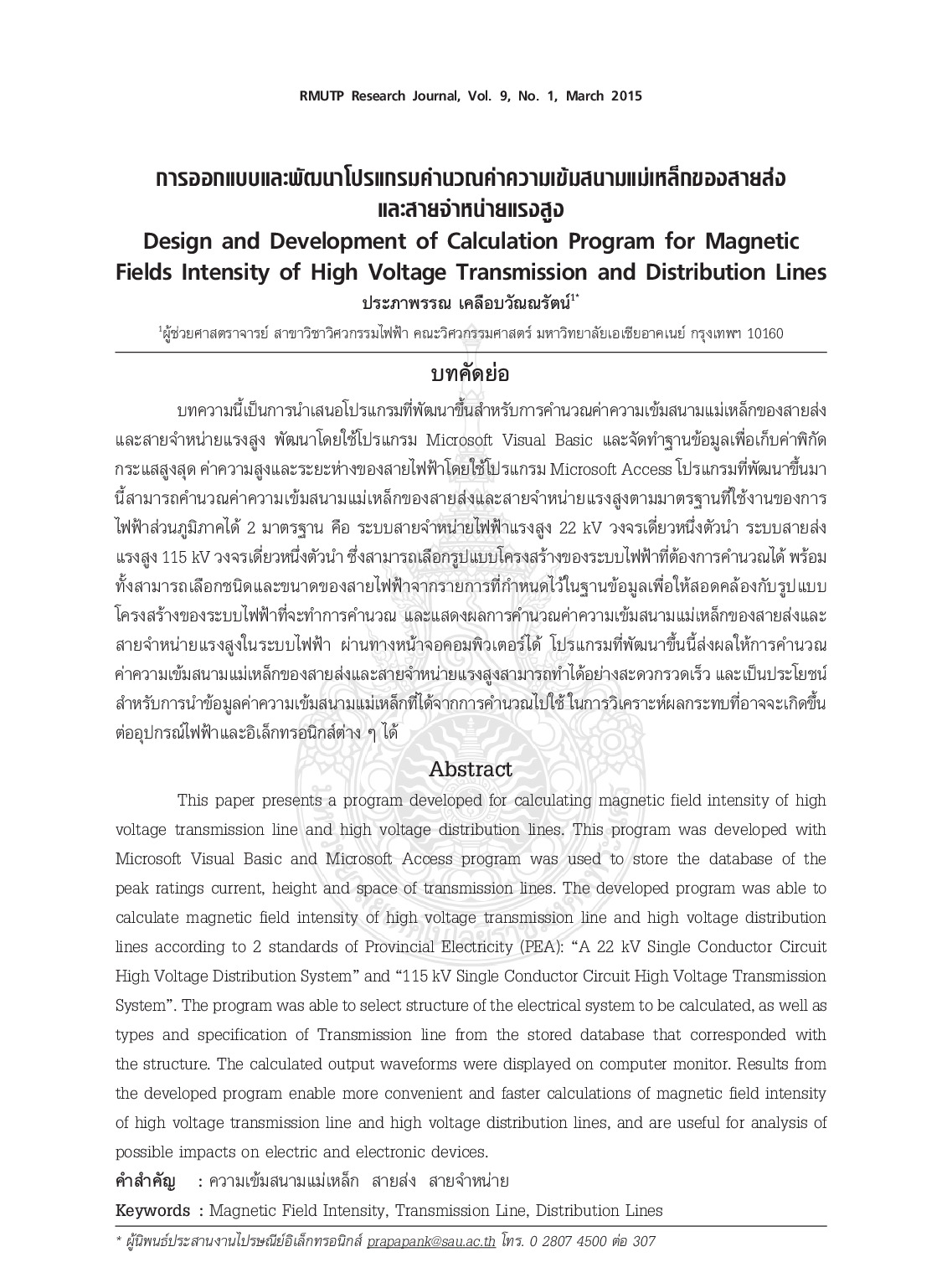

This paper presents a program developed for calculating magnetic field intensity of high voltage transmission line and high voltage distribution lines. This program was developed with Microsoft Visual Basic and Microsoft Access program was used to store the database of the peak ratings current height and space of transmission lines. The developed program was able to calculate magnetic field intensity of high voltage transmission line and high voltage distribution lines according to 2 standards of Provincial Electricity (PEA): “A 22 kV Single Conductor Circuit High Voltage Distribution System” and “115 kV Single Conductor Circuit High Voltage Transmission System”. The program was able to select structure of the electrical system to be calculated as well as types and specification of Transmission line from the stored database that corresponded with the structure. The calculated output waveforms were displayed on computer monitor. Results from the developed program enable more convenient and faster calculations of magnetic field intensity of high voltage transmission line and high voltage distribution lines and are useful for analysis of possible impacts on electric and electronic devices.

The analysis of the grounding system overvoltage in High voltage substation will be held at Bumnetnarong substation Electricity Generating Authority of Thailand ( EGAT ) by using ATP draw for grounding system’s model of substation also to model overvoltage from lightning and to read the result of overvoltage from differences positions. The advantages of the experiment are to be educated and to who design Grounding system in high voltage substation EGAT. The Study’s result of the over voltage level on Ground Potential Rise: GPR model shows that the pie will show close result to the result from the calculation by standard IEEE Std 80-2000 and the result of the Fault Current at the middle position of the grounding system will result in higher overvoltage than at the result at the corner position of Grounding system. The result of Ground Resistance: Rg shows that the increasing of overvoltage the increasing of Ground Resistance: Rg

This paper presents how to design and build electrical protection equipment to apply for a wind turbine generator system which is modeled on low voltage 3 phase 380 volts system. This electrical equipment acts as a switch to open-close an electrical circuit to prevent an electrical system as well as equipments or devices in the system. It will open the circuit quickly and decrease the contact arcing of a circuit breaker. The implementation of power electronic properties is used instead of mechanical parts which is called “Solid-State Beaker”. This article presents a method of solid-state breaker simulation on the mathematical analysis via MATLAB/ Simulink program in the cases of fault occurring in an electrical system. The simulation is used as a comparison when it is brought into the system. The fault voltage is detected by RMS Method which is implemented in LAB View program. The detection signal will be sent to the solid-state breaker and order it to cut off all three lines simultaneously to confirm the efficient running of solid- state breaker. But this paper has not yet considered the effect of Harmonic.

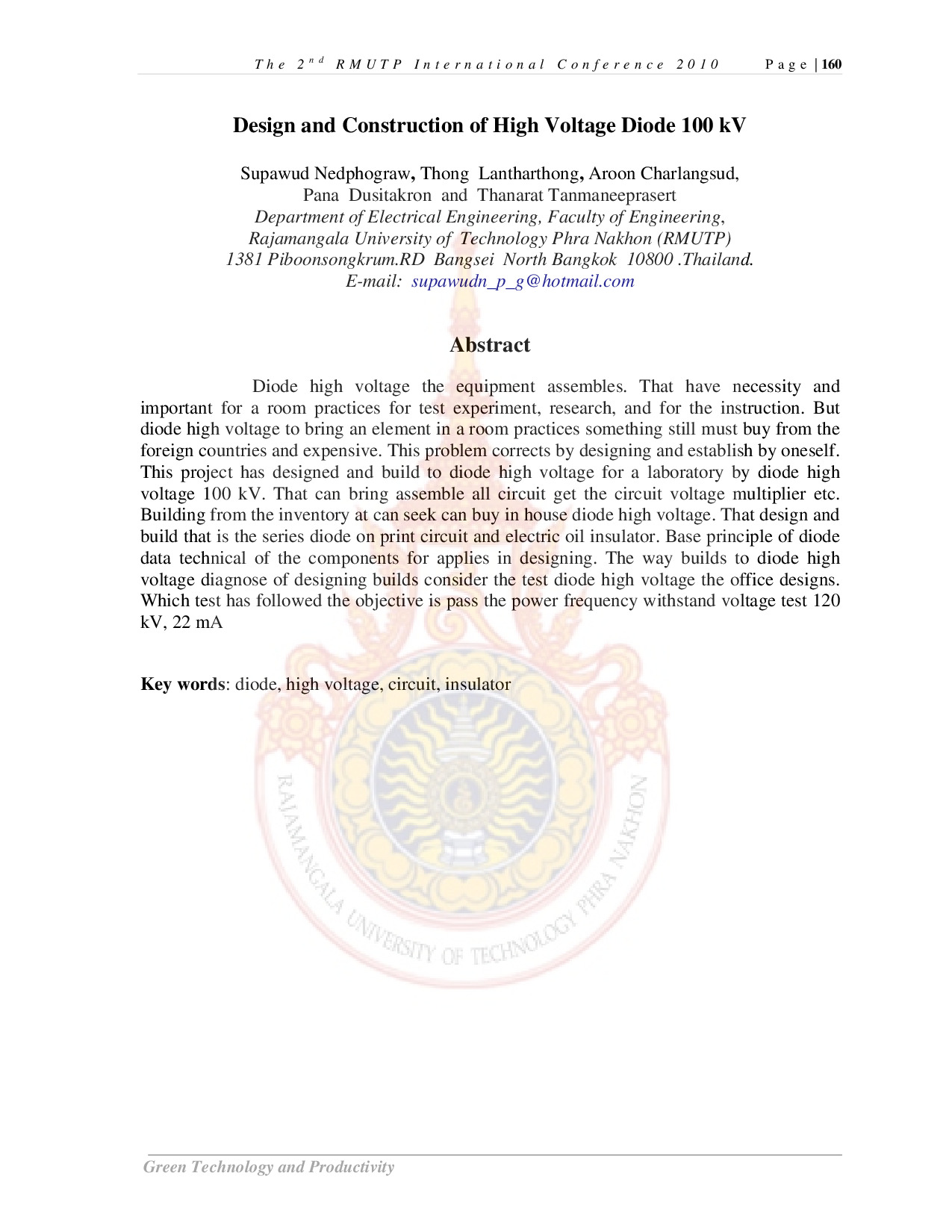

Diode high voltage the equipment assembles. That have necessity and important for a room practices for test experiment research and for the instruction. But diode high voltage to bring an element in a room practices something still must buy from the foreign countries and expensive. This problem corrects by designing and establish by oneself. This project has designed and build to diode high voltage for a laboratory by diode high voltage 100 kV. That can bring assemble all circuit get the circuit voltage multiplier etc. Building from the inventory at can seek can buy in house diode high voltage. That design and build that is the series diode on print circuit and electric oil insulator. Base principle of diode data technical of the components for applies in designing. The way builds to diode high voltage diagnose of designing builds consider the test diode high voltage the office designs. Which test has followed the objective is pass the power frequency withstand voltage test 120 kV 22 mA

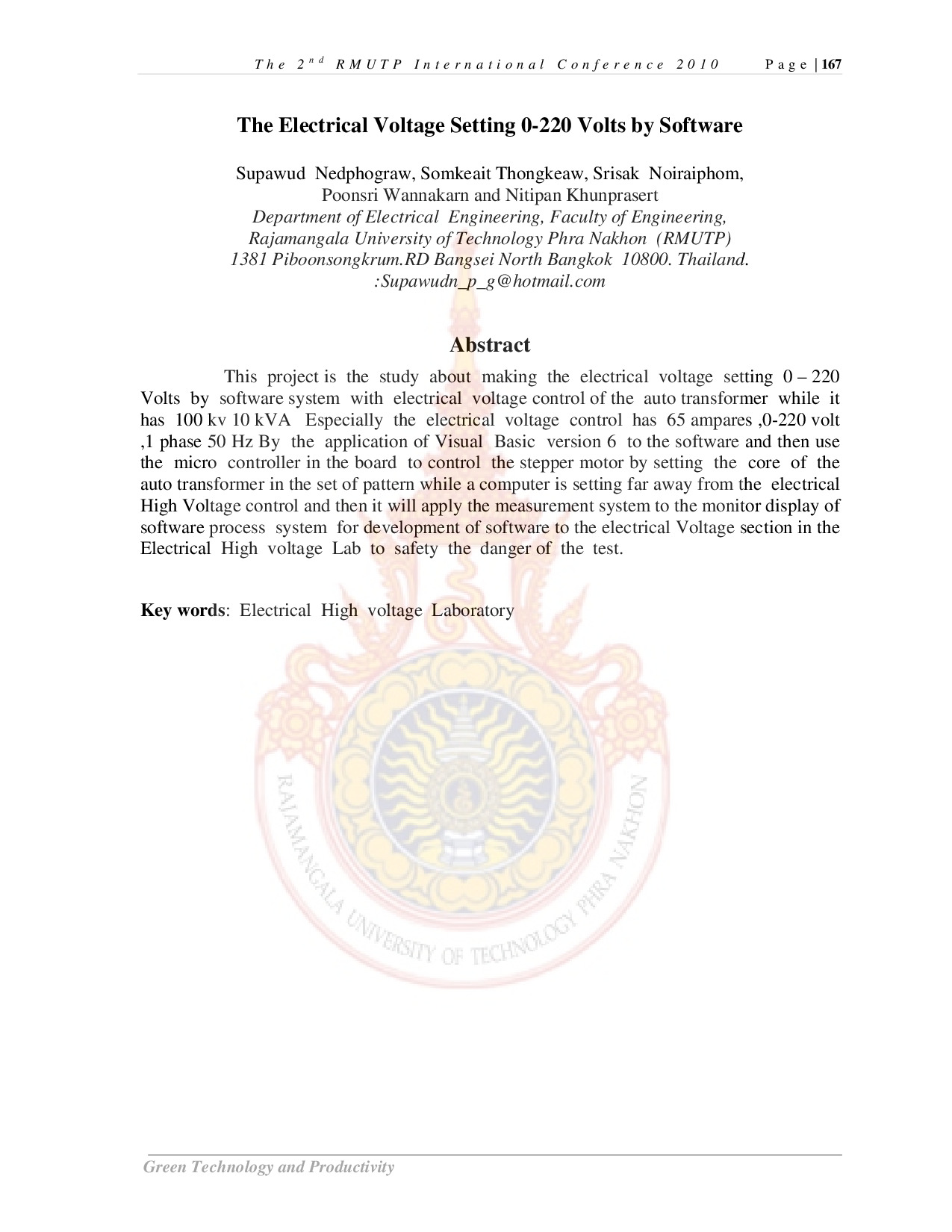

This project is the study about making the electrical voltage setting 0 – 220 Volts by software system with electrical voltage control of the auto transformer while it has 100 kv 10 kVA Especially the electrical voltage control has 65 ampares 0-220 volt 1 phase 50 Hz By the application of Visual Basic version 6 to the software and then use the micro controller in the board to control the stepper motor by setting the core of the auto transformer in the set of pattern while a computer is setting far away from the electrical High Voltage control and then it will apply the measurement system to the monitor display of software process system for development of software to the electrical Voltage section in the Electrical High voltage Lab to safety the danger of the test.
