his research work aimed to study the effects of the addition of sisal fiber and surface treatment by epoxy silane on the physical and thermal properties of polylactic acid (PLA). Specimens of PLA and unidirectional fiber-reinforced composite were processed by a compression molding machine and evaluated the physical and thermal properties by water absorption measurement and differential scanning calorimetry (DSC) analysis respectively. The result showed that water absorption tended to increase by adding sisal fiber whereas surface treatment of sisal fiber by epoxy silane improved water resistance of composites. The water absorption values at immersion time of 5 days were 0.89 1.13 and 1.26 % for PLA PLA/treated sisal fiber composite and PLA/untreated sisal fiber composite respectively. For thermal properties the addition of sisal fiber led to decreases in glass transition temperature and crystallinity. These were because the presence of continuous fiber might interfere with the crystallization of PLA. The surface treatment of continuous fiber with epoxy silane led to difficult crystallization. The good interfacial adhesion interrupted PLA alignment.

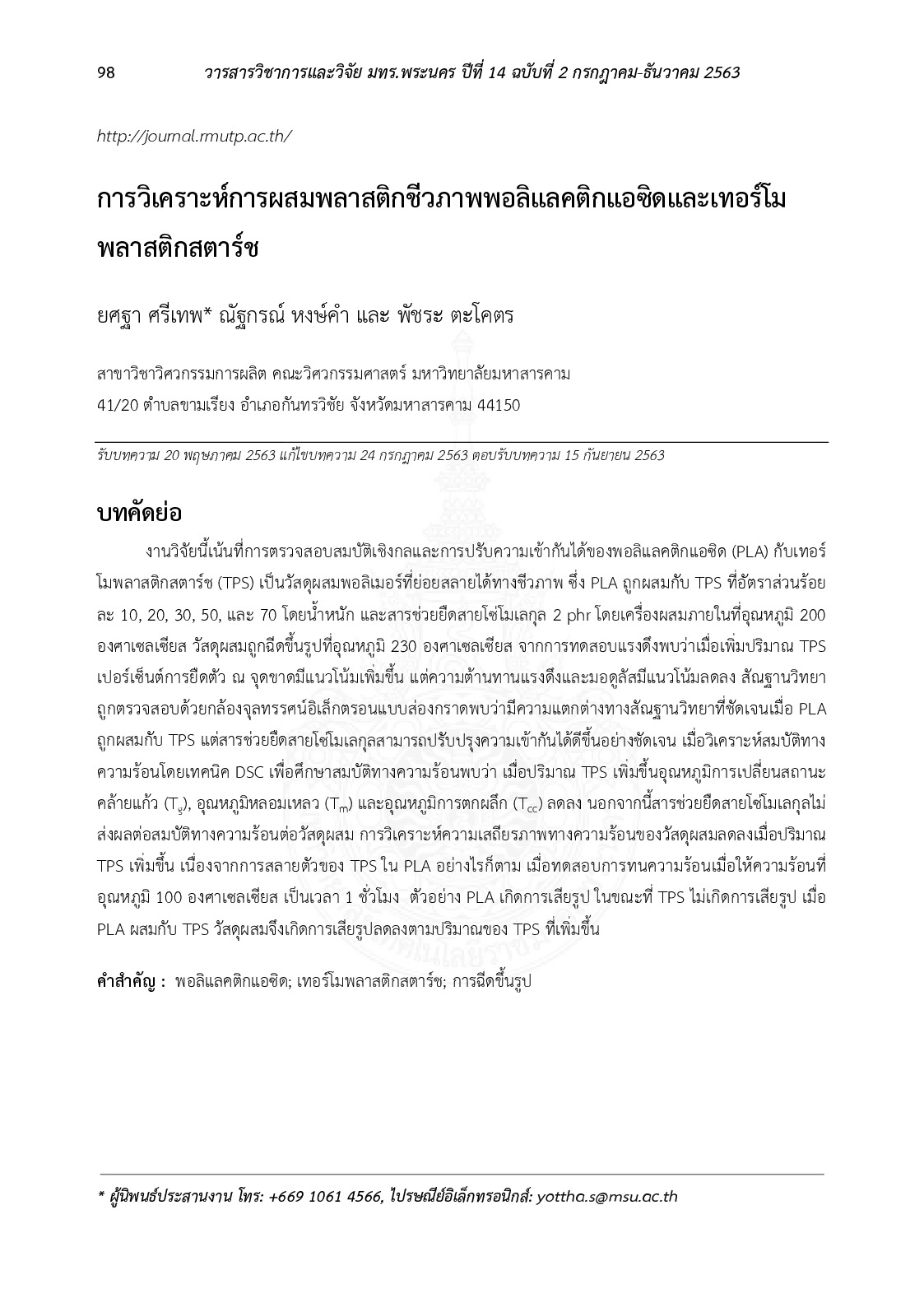

This research was concentrated on characterized mechanical properties and adjusted compatibility of poly (lactic acid) (PLA) with thermoplastic starch (TPS) as biodegradable polymers composites. PLA was blended with TPS at the proportion of 10 20 30 50 and 70 wt% as well as 2 phr chain extender by an internal mixer at 200°C. The blended materials were then injection molded at 230°C. Tensile testing showed that as the amount of TPS increase the elongation at break tended to increase but the tensile strength and modulus tended to decrease. The morphology was investigated by scanning electron microscope. It was found that distinct phase between PLA and TPS was observed. Yet adding the chain extender clearly improved the compatibility between PLA and TPS. The blended materials were also analyzed by differential scanning calorimetry method to study thermal properties. It was found that as the amount of TPS increased the glass transition temperature (Tg) melting temperature (Tm) and cold crystallization temperature (Tcc) deceased. Additionally chain extenders did not affect thermal properties. The thermal stability of the composites decreased when increasing the amount of TPS because of the degradation of TPS in PLA. However when heated at 100ºC for 1 hr the PLA sample bent while TPS did not bend. When PLA was mixed with TPS the composite was bent according to adding TPS.

This research work was to study the toughening modification of polylactic acid by the mixing with epoxidized natural rubber (ENR) and the increase of effectiveness of mechanical properties with a compatibilizer. Enhancement of properties in polylactic acid was evaluated by tensile and impact testings Fourier-transform Infrared Spectroscopy (FTIR) technique Differential Scanning Calorimetry (DSC) technique and Scanning Electron Microscope (SEM). For the addition of ENR it was revealed that the increase of ENR contents improved elongation at break and impact strength but decreased tensile modulus and ultimate tensile strength. Glass transition temperature (Tg) percentage crystallinity and the melting point of polylactic acid tended to decrease with the addition of ENR. Chemical change was found that position of C=O peak in polymer blend was slightly shifted as compared to the spectrum of neat polylactic acid. The optimum formulation for toughening modification was ENR content of 30 wt%. Its impact strength was 1982.55 % of neat polylactic acid. For increasing effectiveness of mechanical properties with a compatibilizer it revealed that the addition of Joncryl ® ADR-4300 as compatibilizer improved both tensile and impact properties. The optimum loading of a compatibilizer for improving mechanical properties was 0.5 wt% of polylactic acid. The decreases of crystallinity and melting point of polylactic acid with adding Joncryl ® ADR-4300 might be because Joncryl ® ADR-4300 was also chain extender of polylactic acid and it might be obstructing crystallization. The presence of Joncryl ® ADR-4300 unaffected on Tg value and chemical change.
