Special Project Study on Invention Tray with pedestal (Phan-Poom) released the smell from the cocoon. Have a purpose to study the process of producing Phan Tray with pedestals releasing scents from silk cocoons and to study consumer satisfaction Towards the invention Tray with pedestal released the smell from the cocoons. In which a special project studier conducts studies and collects relevant information the data obtained was designed to sketch design. Release the scent from silkworm in 3 styles which are SKETCH DESIGN - A SKETCH DESIGN -B and SKETCH DESIGN -C so that 3 experts will consider the styles of the 3 Phan tray. Phan Based on comments of experts After that I brought Phan to inquire. Satisfaction of target group from 50 individuals the data were analysed using frequency percentage and average values with the analysis results as follows Design and process for making Phan Bush release the smell from cocoons the results showed that Most experts agree that the suitable silkworm varieties for Phanpanrote hybrid silkworm varieties were the large yellow silkworm cocoons because the large yellow silkworm cocoons were large. And easy to peel separate each colour clearly Natural colour cocoons and the components of the Phan Bush should be fabricated from silk cocoons. Satisfaction of the target group towards the product of Phan-Poom invention releasing the scent from the cocoons Product Found that the respondents were satisfied with the suitability of the yellow silk cocoon Pairote Maipradit averaged 4.56 at the highest level. In terms of value and usage they were satisfied in using in various ceremonies with the average value of 4.58 at the highest level. Price satisfaction 4000 baht with an average of 4.02 the highest level. And the distribution locations were satisfied in the online market with an average of 4.64 at the highest level.

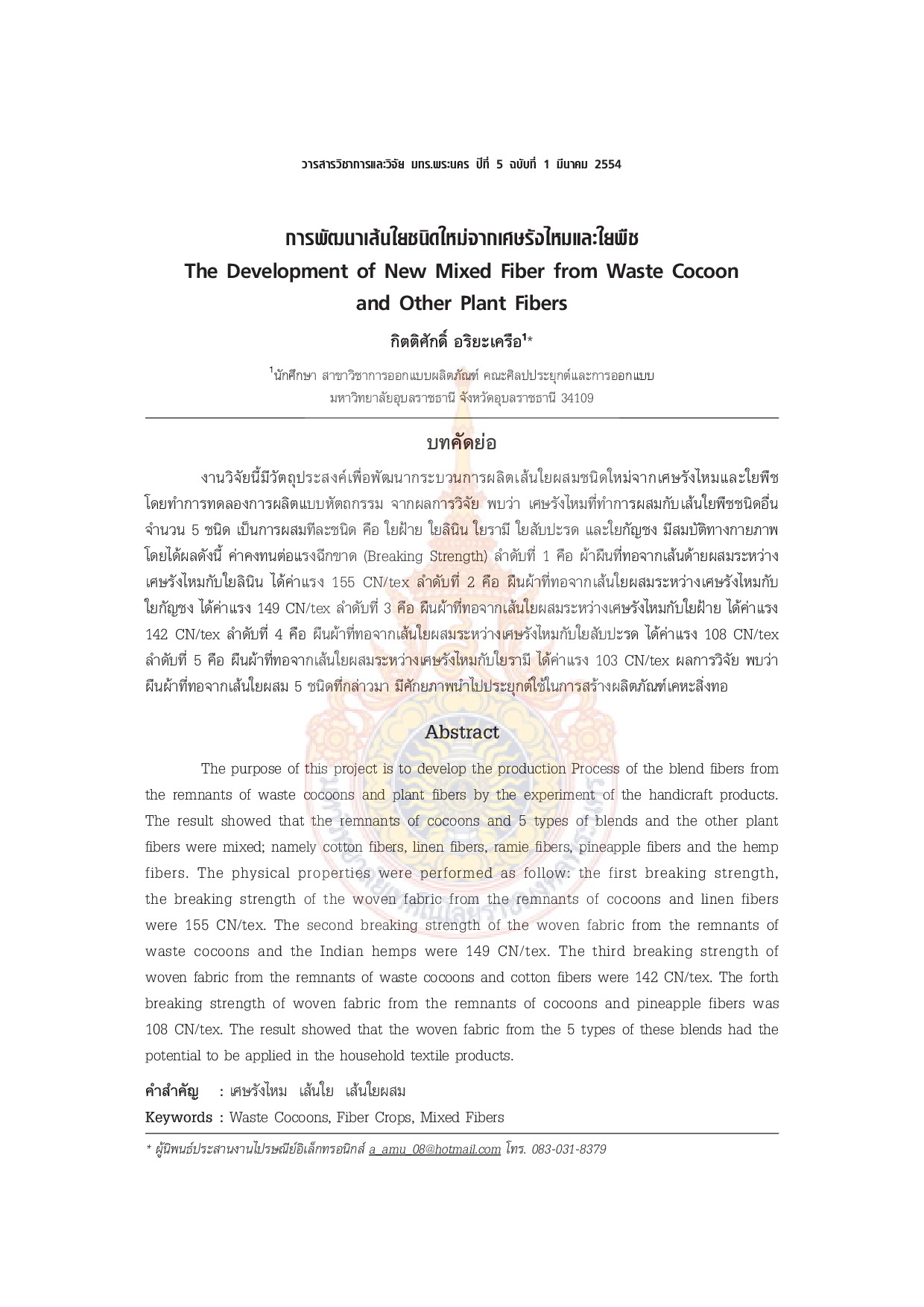

The purpose of this project is to develop the production Process of the blend fibers from the remnants of waste cocoons and plant fibers by the experiment of the handicraft products. The result showed that the remnants of cocoons and 5 types of blends and the other plant fibers were mixed; namely cotton fibers linen fibers ramie fibers pineapple fibers and the hemp fibers. The physical properties were performed as follow: the first breaking strength the breaking strength of the woven fabric from the remnants of cocoons and linen fibers were 155 CN/tex. The second breaking strength of the woven fabric from the remnants of waste cocoons and the Indian hemps were 149 CN/tex. The third breaking strength of woven fabric from the remnants of waste cocoons and cotton fibers were 142 CN/tex. The forth breaking strength of woven fabric from the remnants of cocoons and pineapple fibers was 108 CN/tex. The result showed that the woven fabric from the 5 types of these blends had the potential to be applied in the household textile products

The purpose of this research was to develop new mixed fiber from waste cocoon and other plant fibers. It was found that waste cocoon has qualitative properties to produce new mixed fiber when mixed with five kinds of plant fibers namely cotton yarn linen yarn pineapple yarn ramie yarn and hemp yarn. The processes included boiling waste cocoon in wetting agent water and Sodium Carbonate for 30 minutes at 90 ºC and dehydrating it. After that short cocoon yarn was obtained. Then mix it with the five kinds of plant fibers with the ratio of 50:50 in carding at silk card and undergo mixing and spinning process. Qualitative test result of new mixed fiber from waste cocoon used as weft yarn and five kinds of plant fibers used as warp yarn in industrial weaving showed that fiber from waste cocoon mixed with hemp yarn has the best breaking strength of 194 CN/tex followed by waste cocoon mixed with ramie yarn of 149 CN/tex waste cocoon mixed with linen yarn of 146 CN/tex waste cocoon mixed with pineapple yarn of 145 CN/tex and waste cocoon mixed with cotton yarn of 143 CN/tex. Meanwhile fiber from waste cocoon mixed with heft yarn has the best mean elongation of 2.30 cm followed by waste cocoon mixed with cotton yarn of 2.32 cm waste cocoon mixed with ramie yarn of 2.77 cm waste cocoon mixed with linen yarn of 3.42 cm. and waste cocoon mixed with pineapple yarn of 3.43 cm. Thus the research results indicated that fiber from waste cocoon mixed with hemp yarn is good for producing home textile as it has the highest breaking strength while fiber from waste cocoon mixed with pineapple yarn is good for producing clothes.
