The objective of this study was to develop a technique for detection of the water added in raw milk using Inter Digital Electrode (IDE) other than using conventional methods such as determination of specific gravity or of the freezing point temperature and the compression on frozen samples. The assumption capacitance value of added water in raw milk will be varied with the quantities of added water. The experiment was performed by using a LCR (GW INSTEK LCR-817) meter to measure the capacitance value of milk contaminated water from 0 to 90% and electrodes which are normal and ground of different electrode number (N) of 7 10 and 13 width (W) of 1 and 2 mm. and length (L) of 10 20 30 40 and 50 mm. Results shown that the capacitance value of the water added in raw milk were lower than the raw milk without added water. Additional the W1L50N13G (W=1 mm. L=50 mm. N=13 and grounded) detects the water added in raw milk with R2 of 0.9904

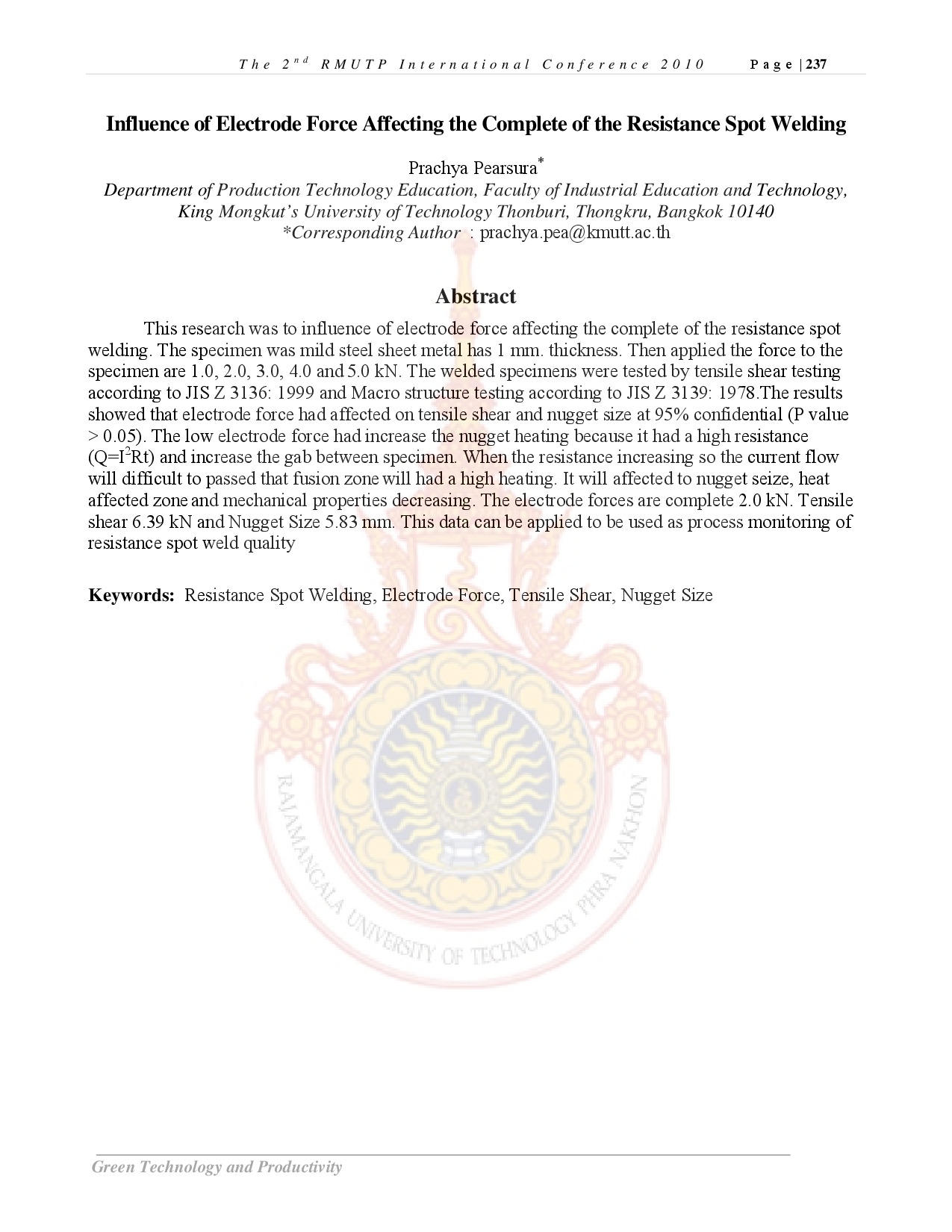

This research was to influence of electrode force affecting the complete of the resistance spot welding. The specimen was mild steel sheet metal has 1 mm. thickness. Then applied the force to the specimen are 1.0 2.0 3.0 4.0 and 5.0 kN. The welded specimens were tested by tensile shear testing according to JIS Z 3136: 1999 and Macro structure testing according to JIS Z 3139: 1978.The results showed that electrode force had affected on tensile shear and nugget size at 95% confidential (P value > 0.05). The low electrode force had increase the nugget heating because it had a high resistance (Q=I2Rt) and increase the gab between specimen. When the resistance increasing so the current flow will difficult to passed that fusion zone will had a high heating. It will affected to nugget seize heat affected zone and mechanical properties decreasing. The electrode forces are complete 2.0 kN. Tensile shear 6.39 kN and Nugget Size 5.83 mm. This data can be applied to be used as process monitoring of resistance spot weld quality.

In this article the construction of a high-frequency high-voltage commercial flyback transformer to supply an input voltage for a tesla transformer is proposed. The purpose of a demonstration is a breakdown through the air gap of electrode. To confirm the proposed method the design of control of a flyback converter by using a commercial flyback transformer is rated with a 10 to 15 kV output voltage to supply a tesla transformer at a rated 30 kV and 120 kHz. The experimental results of an output breakdown design of the electrode and the setting for a 1 cm space are constructed. The electrodes consisted of the following: sphere–sphere electrode plane–plane electrode sphere–plane electrode and rod–plane electrode. It was found that there was a breakdown at the output electrode in all cases. Accordingly there was a breakdown with a 2 cm sphere diameter with reference to the IEC 60052-2002 standard; after that it was compared with the standard table and the atmospheric and temperature at the laboratory were adjusted resulting to a high voltage equal to 31.5 kV.

This paper proposes a study of an Ozone generator. The generator under the study is designed using the electrode with uniform field. The electrode is constructed in the plane shape with positive potential. The transformer oil is used as insulating materials to prevent discharges around the electrode discharges in the air void depends on the size the types of dielectrics and level of applied voltage. Between the electrode and the air void there is acyclic dielectric. The stainless electrode with water is used as a ground potential. The breakdown depends on the electric field intensity. It is found that there is sufficient amount of ozone due to the ionization Development and design ozone generator this research electric field intensity on the water type and this can be used as a principle to construct a new type of ozone generator.

This paper presents a testing of three insulators namely solid fluid and gas for choosing the best electric insulators. In order to generate the ozone gas the insulator must be selected in electrode set. Nowadays the insulators do not have the optimal test procedure for getting total efficiency. Therefore in this paper a design of ozone generator is proposed by using the fundamental of electric field stress. The ozone generator is a coaxial cylindrical electric type that has solid insulator in center of glass tube. This solid insulator will be dielectric among the high voltage electrodes. Ozone gas will generate in this air gap. This paper also focuses on the insulator testing of three insulators. It will find the efficiency of 3 insulators and compares them with the density and stress of ozone gas. The experimental results show the performance and ensure the optimal ozone generator design.
