This research aimed to study powe generation from heat loss strove by thermoelectric generator unit. As cooking with a gas stove can cause heat loss between the stove and the cookware this heat loss from gas stove can be converted into the electricity. For the experiment the researcher used a gas stove model KB5 installed with thermoelectric plate model TEG1-241-1.4-1.2 connected in a series to the power of 4 modules. Then experimental conditions of the gas pressure in the gas strove were set at 0.1 0.2 0.3 0.4 0.5 and 0.6 kg/cm2 respectively while the amount of mixed air was constant during the experiment. The results showed that when the gas pressure was at 0.6 kg2 the temperatures of the hot side and cold side of the thermoelectric generator was equal 250.5oC and 65.5oC respectively. Lt also generated the highest electric power of 53.3 watts. The power conversion efficiency was 5.3% at 38.1 Volts with 1.4 Amperes. In addition when electric was connected to a thermoelectric generator unit with 12 VDC 7-watt LED bulb the gas pressure in the gas stove were set at 0.3 0.4 0.5 and 0.6 kg/cm2 respectively was affected by the difference between the heating temperature and the cold temperature in the range of 185o C that could lighten up LED bulb.

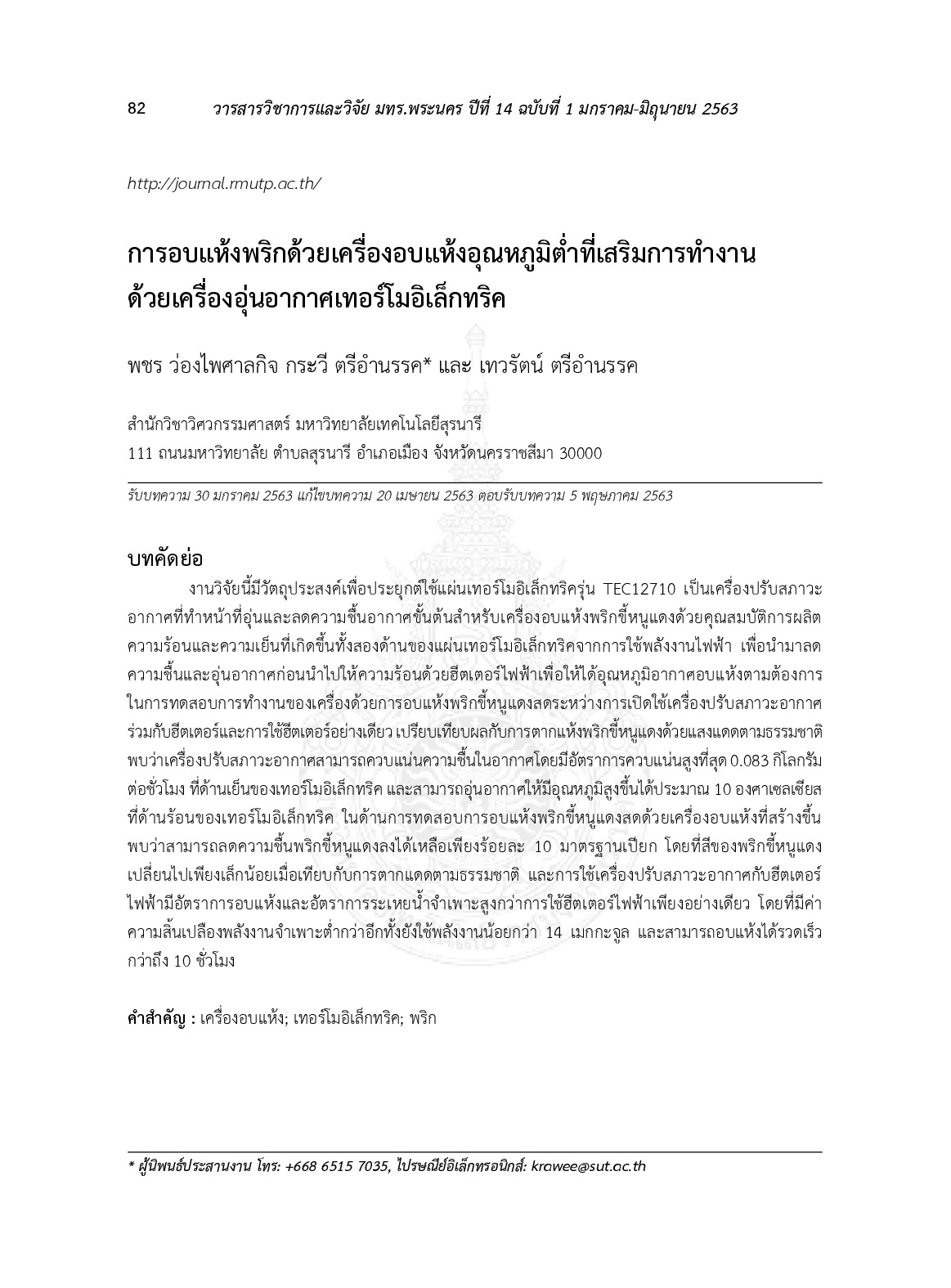

This research objective was to apply thermoelectric module model TEC12710 as a preheater and dehumidifier for red chilies dryer. The heat side and cool side of Thermoelectric module affected by supplied electricity were used to produces the low humidity and warm air in preheater before charging to the main electric heater of dryer. Fresh red chilies were selected as a sample in the prototype testing during the use of preheater assisted main heater and using only main heater. The test results are compared with the sample dried under the natural sun drying. The experimental results show that the preheater can condense the moisture in air with the highest MER of 0.083 kgwaterh-1 at cold side of thermoelectric module and can heat the air up in 10°C of temperature with hot side of thermoelectric module. The final moisture content of sample is only 10%wb with the slightly changed in color when compared with the sample from sun drying. The using of preheater with main heater gives a higher specific moisture extraction rate lower specific energy consumption 14 MJ energy used and can dry faster than 10 h when compared with the using of only main heater.

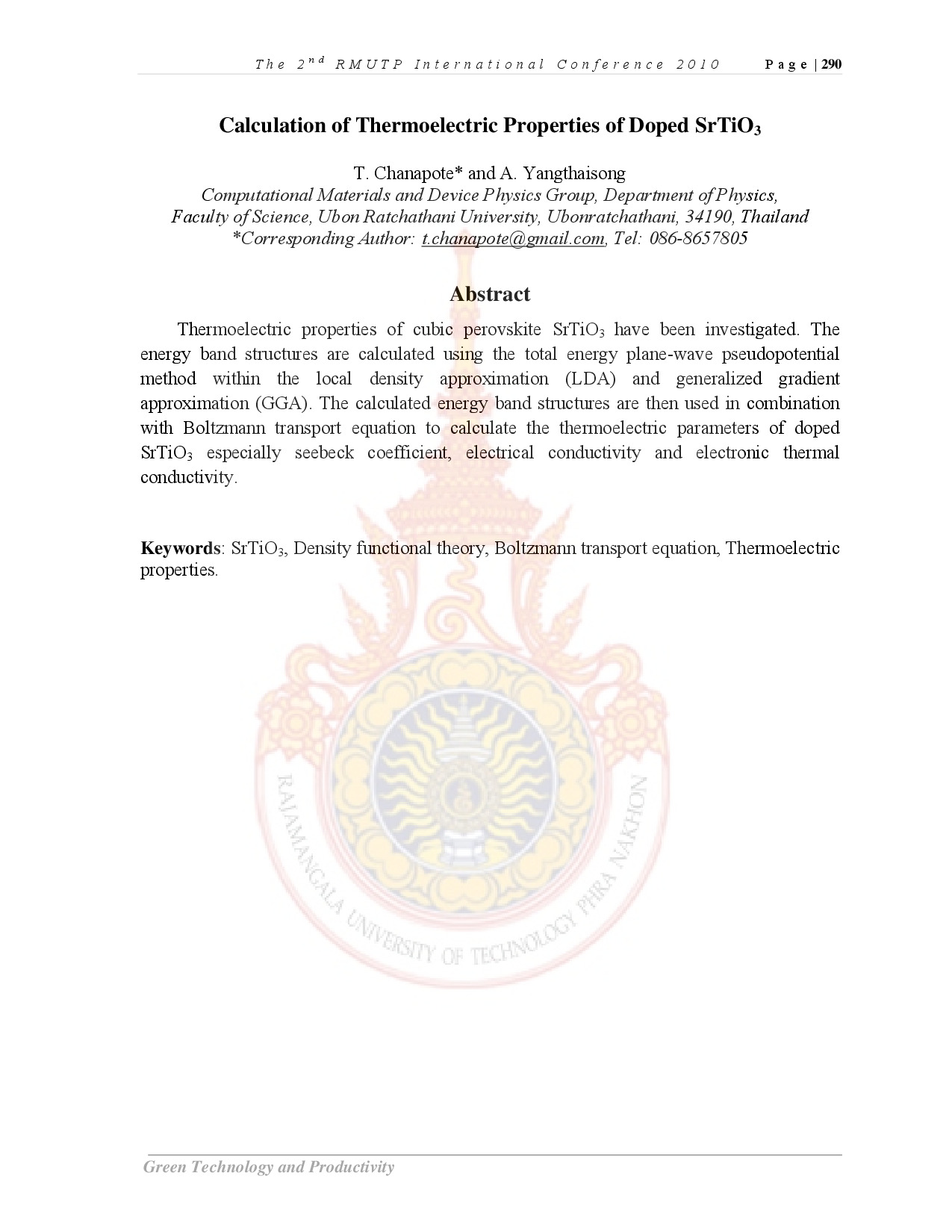

Thermoelectric properties of cubic perovskite SrTiO3 have been investigated. The energy band structures are calculated using the total energy plane-wave pseudopotential method within the local density approximation (LDA) and generalized gradient approximation (GGA). The calculated energy band structures are then used in combination with Boltzmann transport equation to calculate the thermoelectric parameters of doped SrTiO3 especially seebeck coefficient electrical conductivity and electronic thermal conductivity.

This research aims to develop the waste heat energy conversion device to generate electricity through a thermoelectric generator (TEG) which is called “CHEU. This device is applied to the LPG cookstove that serves as a waste heat source. The thermoelectric generator with 4 modules in series connection is used to convert heat energy to electricity. The present research shows a modification of the CHEU based on two concepts as follows: (1) re-design the structure for heat transfer improvement and (2) select the high capability of TEG to support a high temperature from a heat source as a result of (1). In this study the modified CHEU is called “MCHEU”. A heat-load condition is set as the gas pressure of LPG which varies in a range of 0.1 - 0.6 kg/cm2 and the throttle valve is fixed approximately at 40% of a fully opened throttle while the air entrainment is fully opened throttle. Also the water-cooling system is used for heat dissipation. Base on the performance evaluation of MCHEU the interesting results are drawn as follows: 1) the maximum temperature difference is on an average value of 278.5oC at a maximum heat load condition while a maximum voltage current and power are on an average value of 18.83 V 5.67 A and 107 W respectively. 2) The temperature difference of MCHEU is higher than that of CHEU with an average value of 50%. 3) The output power obtained by MCHEU is higher than that of CHEU with an average value of 52% and takes less time about 40% for fully charging a battery (12V 7.5Ah). Nevertheless MCHEU usage does not affect the thermal efficiency of a cookstove. 4) The efficiency of an energy conversion obtained by MCHEU is 20% which is higher than that of CHEU about 2%.
